Overview

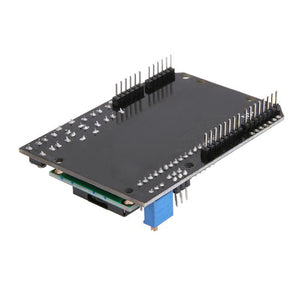

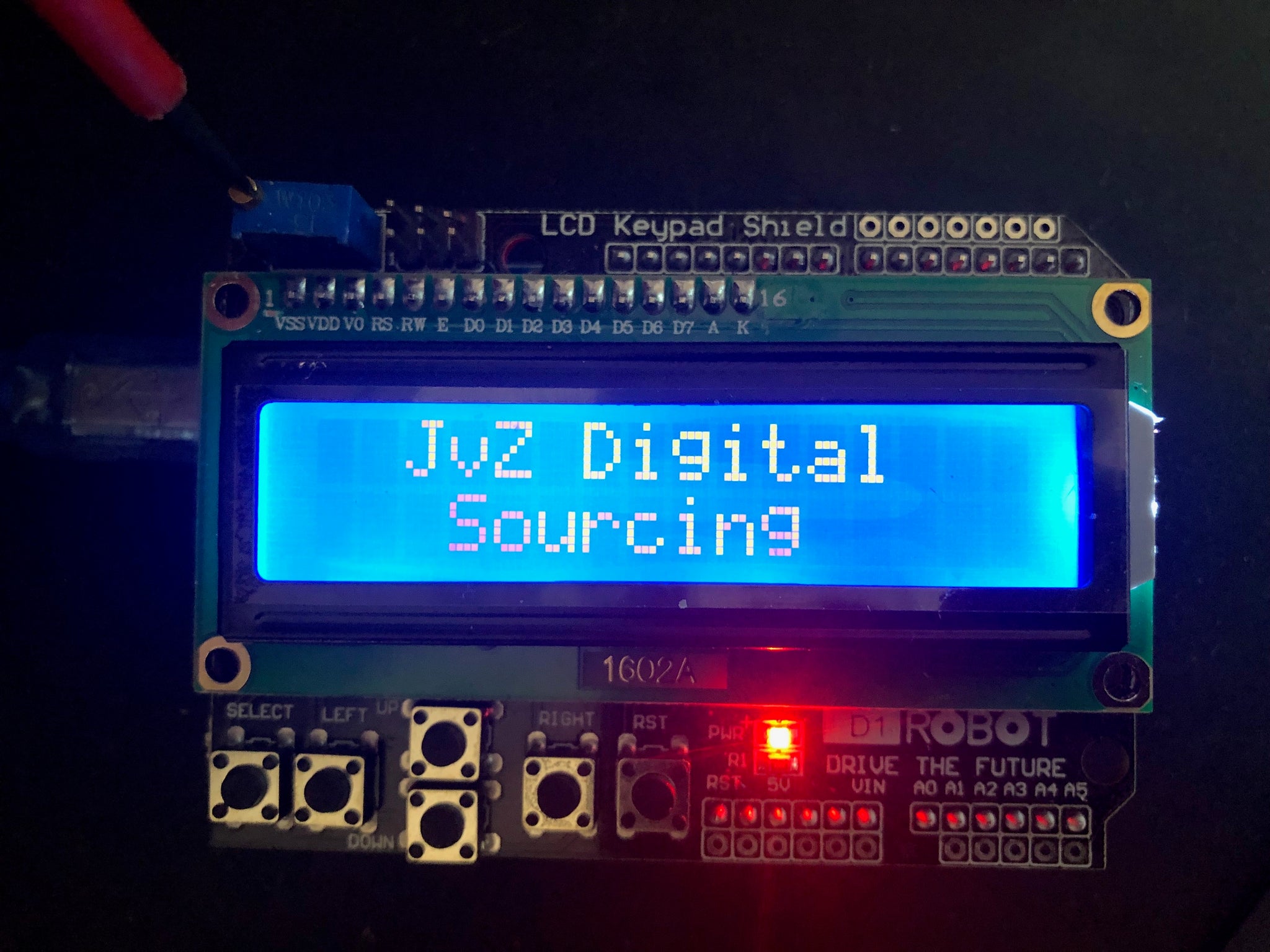

Looking for a way to give your awesome new concept a user interface? Look no further this is the answer, with a 2 line character display (16 characters per line) and 6 buttons there's a world of possibilities. Best of all there is no extra wiring just connect to your Arduino Uno and you are good to go, take a look at our tutorial and you would understand how easy it is. The blue backlight on the LCD really does POP, unfortunately the photos does not do it justice you need to see it for yourself.
Specifications
- 16 X 2 character
- Blue backlight for a modern feel
- Voltage: 4.5-5.5V
- Current: 2.0mA(5.0V)
- Size: +- 80 X 58 X 21mm
Pin Out
1 - VSS power supply 9 D2 data
2 - VDD positive pole 10 D3 data
3 - VL Liquid crystal display bias 11 D4 data
4 - RS data/command options 12 D5 data
5 - R/W read/write options 13 D6 data
6 - E enable signal 14 D7 data
7 - D0 data 15 BLA backlight positive pole
8 - D1 data 16 BLK backlight negative pole
