Description

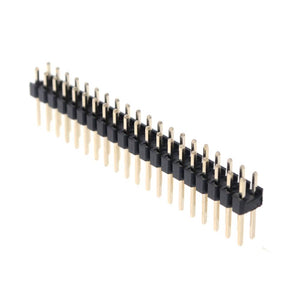

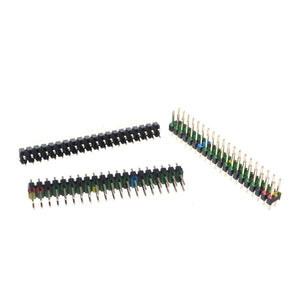

A picture paints a thousand words, this is a Raspberry Pi Zero connector BUT the pins are colour coded.

Specifications

BEFORE SOLDERING PLEASE ENSURE IT'S SOLDERED AS FOLLOW;

Red = 5V
Yellow = 3V3
Black = GND
Blue = DNC (Reversed I2C)
Green = GPIO
