Description

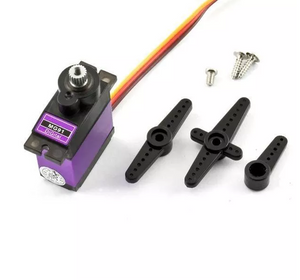

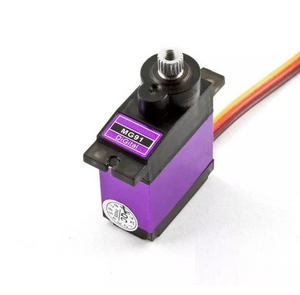

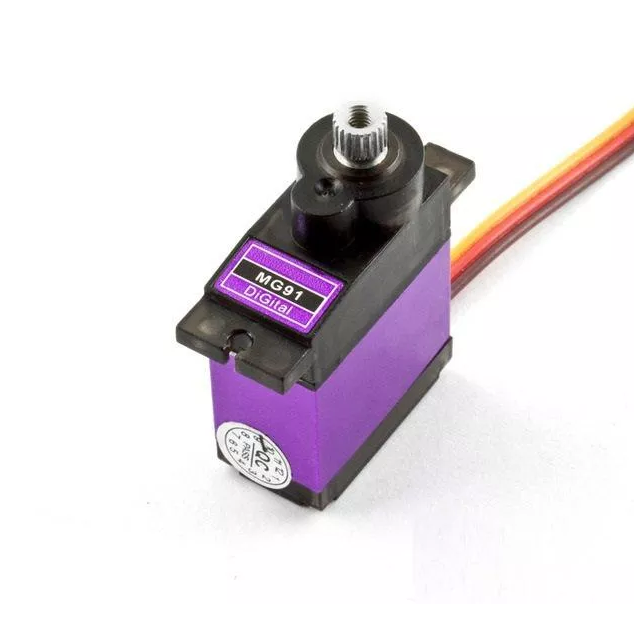

Nice compact premium quality servo, this servo is similar to the SG90 servo with the exception that they make use of premium metal gears in the servo for those heavy duty applications.

ALL OUR ITEMS ARE LOCALLY STOCKED AND SHIPS IMMEDIATELY!

Specifications

Weight: 13g
Dimension: 22.8x12x31 mm
Stall torque: 2.2kg/cm (4.8v); 2.6kg/cm (6.0v)
Operating speed: 0.13sec/60degree (4.8v); 0.11sec/60degree (6.0v)
Operating voltage: 4.8~6.6v
Gear Type: Metal gear
Bearing: Double ball bearing
Servo case: Middle with alloy case
Temperature range: 0- 55deg
Dead band width: 1us
servo wire length: 25cm

 A:32.5mm
 B:22.6mm
 C:28.5mm
 D:12mm
 E:31.5mm
 F:19.8mm
