Overview

An absolute essential tool for your toolbox when doing your Arduino development.

Take note! These are not easy to setup because the drivers for these converters are a bit dated and for those reasons they are a lot cheaper than the other RS232 cables.

Specifications

Driver: Prolific (Please follow the steps in this link for installation)

Also Check: http://wp.brodzinski.net/hardware/fake-pl2303-how-to-install/

Chip: PC-PL2303HX

Version: A

Length: 1M
Driver: PL2303
Voltage: 5V
TTL Levels: 3.3V

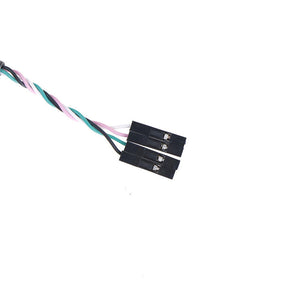

Black cable-----GND
Green cable----TXD
White cable----RXD (Not marked in white for obvious reasons:)
Red cable ---- VCC (5V)
